wall mounted multipurpose ventilation fan:
1) High quality material
2) Large wind capacity design
3) Roll bearing engine to save power, increase wind pressure and
decrease energy loss
4) Low noise after long time operation
Technical parameter of ventilation:
| Style | Diameter blades(mm) | Blades rotational speed
(r/min) | Motor rotational speed(r/min) | Air volume(m³/h) | Total pressure
(pa) |
| 9FJ-710A | 710 | 560 | 1350 | 17700 | 55 |
| 9FJ-900A | 900 | 560 | 1350 | 26700 | 60 |
| 9FJ-1000A | 1000 | 560 | 1350 | 32400 | 62 |
| 9FJ-1250A | 1250 | 360 | 1350 | 40200 | 55 |
| 9FJ-1400A | 1400 | 360 | 1350 | 55500 | 60 |
| 9FJ-1600A | 1600 | 325 | 1350 | 64500 | 60 |
| 9FJ-1000B | 1000 | 620 | 1350 | 36000 | 60 |
| 9FJ-1250B | 1250 | 440 | 1350 | 45600 | 60 |
| 9FJ-1400B | 1400 | 440 | 1350 | 60000 | 60 |
| Style | Noise decibels(less than) | Input power(kw) | Rated voltage
(v) | Height(mm) | Width(mm) | Thickness(mm) |
| 9FJ-710A | 70 | 0.37 | 380 | 830 | 830 | 380 |
| 9FJ-900A | 70 | 0.55 | 380 | 1000 | 1000 | 380 |
| 9FJ-1000A | 70 | 0.75 | 380 | 1100 | 1100 | 380 |
| 9FJ-1250A | 70 | 0.75 | 380 | 1385 | 1385 | 380 |
| 9FJ-1400A | 70 | 1.1 | 380 | 1535 | 1535 | 380 |
| 9FJ-1600A | 70 | 1.5 | 380 | 1750 | 1750 | 380 |
| 9FJ-1000B | 70 | 0.75 | 380 | 1100 | 1100 | 450 |
| 9FJ-1250B | 70 | 1.1 | 380 | 1385 | 1385 | 450 |
| 9FJ-1400B | 70 | 1.5 | 380 | 1535 | 1535 | 450 |
ventilation fan:

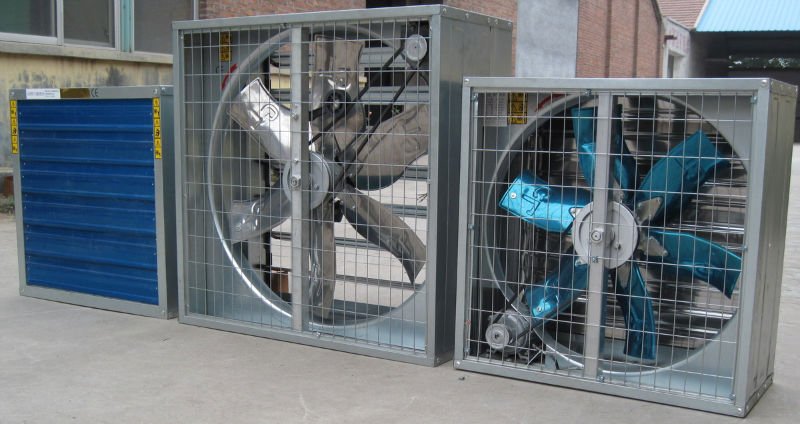

9A Series of ventilation fan is made up of frame,wind set,fan
blade,motor,
drive mechanism,bracing frame,shutter,protective net etc.The motor
drives the fan blades,
air flow exhaust the air in the house and puts fresh air into the
house and then ventilates the air in the house .

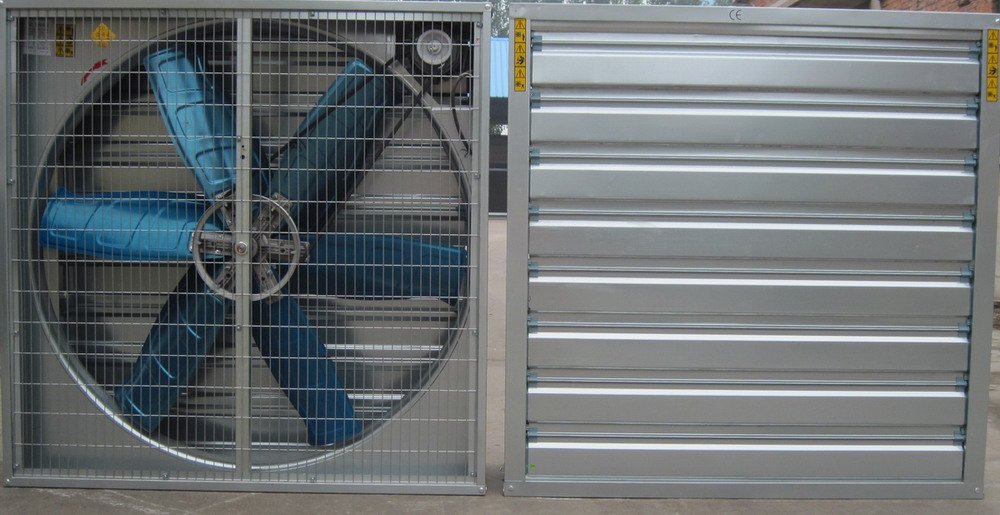

When the fan stops working ,the shutter close itself, which
prevents the dusts going into the fan and
avoids the detrimental of rain,snow or wind. If automatic
temperature control system is assembled.,
the products will be operated automatically.
9 series of ventilation fan ,the overall performance is much
better,the structure is more reasonable .
Utilizing centrifugal principle and hammer made shutter open ,close
system can ensure the shutter open up ,
then make the fan running at high efficiency all the time .Then it
reduces the consumption of energy and enhanced the air flow .
When the fan stopped, the shutter closes more closely at the
control of steel spring ,which prevents any air leak.
The motor is seted in the top of the fan ,which is easy to
maintain..
9FJ/B series of products with its unique design makes the running
efficiency
and air flow much higher than other like products.
