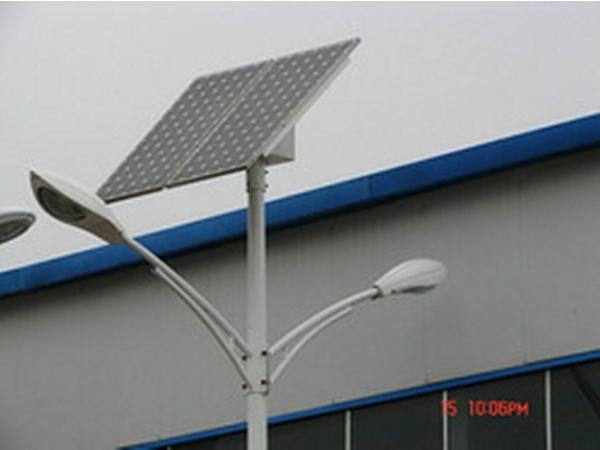

    China Supplier Of Solar Street Light


    Solar LED Street Light(30W)
    1. Light source: High frequency electrode bulbs, low voltage sodium, LED etc.
    2. Solar panel: 60wp, 85wp, 100wp, 120wp, 160wp, 175wp, 220wp etc.
    3. Lamp pole: Nice shape lamp with spray-paint after hot galvanization, designned in 4m to 13m according to customers' requests.
    4. Working time: 6-12hours per day and continue working 2-5days according to customers requests.
    5. Suitable installation: Uptown road, courtyard, park, tourscenery.

    Δ ADVANTAGE:
    1. USACree/Bridgelux Q5 LED, multi-functional
    2. Environment protection, Energy saving
    3. Easy installation, Long life span
    4. Free of maintenance
    5. Low voltage, safe and reliable
    6. Independence operation system
    7. Applications: Street, Garden, Public square, Park
    Δ MATERAILS:
    1. Lamp Body:
    high pressure die-cast aluminum, corrosion resistant house, high in strength and compact in structure;
    The surface is static spray-paint, high temperature and weather resistant frame tenure, colorful;
    2. Pole Material: SS400 steel, pot galvanizing, plastic spray treatment.
    Δ Working time: 10hr/d, 6H full-energy mode + 4H energy-saving mode, 3 continued overcast & raining days.
    Δ LED LIGHT SPECIFICATIONS
    Model No.SLD05-30W
    Lamp power30W
    LED quantity30pcs*1W
    Voltage (V)DC12V
    Luminous Efficiency80~90 LM/W
    Color temp. (K)6500
    Ilumination (LUX)35LUX 8m
    Beam angle135°
    Working temp. (º C)-15~+55
    IP gradeIP65
    Size (cm)63.5*27*19.5
    Weight (KG)7.5
    Δ SOLAR PANEL SPECIFICATIONS
    ModelSM45 series
    Nominal Power(W)45W/12V
    cellmono or poly, conversion efficiency: 17%
    Arrangement way6*9
    System voltage(V)12/24V
    Pmax(W)45W
    Vmp(v)17.2V
    Imp(A)2.91A
    Voc(V)21.6
    Isc(A)3.31A
    Dimension of Module(mm)856*554*40
    Weight(kg)6
    CellMono/Poly
    Δ SOLAR CONTROLLER 10A/24V SPECIFICATIONS
    ITEM NO.24V / 10A
    Rated voltage(VDC)24
    Rated current(A)15
    Charge recommended max. current(A)15
    The biggest open-circuit voltage(V)28.8
    Charge(V)Protection28.8± 0.2
    Floating charge23.6~26.2
    Restore23.6± 0.2
    Temperature compensation-30mV/º C
    Low voltage(V)disconnecct21.6± 0.2
    Restore23.6± 0.2
    Current without load (mA)20
    Application ambient temperature-35º C~+55º C
    Application altitude (m)≤ 5000
    Size (mm)140*90*26
    Weight (KG)0.25
    Perfect protect function:
    1. Battery reverse connection protection
    2. Solar panel reverse polarity connection protection
    3. Over load and short circuit protection
    4. Back flow from battery to solar module protection
    5. Battery open circuit protection
    6. Lighting surge protection(in case necessary)
    7. Over-charging and over-discharging protection
    8. LED display
    9. Thunder strike protection;
    10. Time control and light control.
