feed system for broiler
1.feed pan with14 grills,feed 40-55 birds per pan
2.100% raw material
3.easy to install and clean
automatic feeding systems for breeders and broilers
Function:
The feeding system is mainly used to convey feed from the hopper
into each tray to ensure the eating of the meat chickens and
automatically control the converying openging/closing of the motor
by the material level sensor to achieve the aim of automatic
feeding.
Performance parameters of feeding line system:
1. High-quality special driving reduction motor.
Power: 0.75kw, Voltage:380V Frequency: 50HZ, Three-phase AC current
2. V-shaped Bin ( with Hopper)
Bin Volume: 115L, Hopper volume: 38L
Material: Hot-DIP galvanized sheet
3. Feeding system
Diameter of conveying pip: Φ 45mm
Material: Hot-DIP galvanized steel pipe with the zinc coating
amount of more than 275 g/m2
Helical spring auger from South Africa, feeding capacity: 450kg/h.
4. Material level sensor from Israel: Time delay range 0 to 2 hours
Main characteristics of the pan:
1.The pan is used on automatic pan feeding system
2.There are 14 grills, fan feed 40-55 chicken per pan
3.V shape bottom, reduce feedstuff waste, and can let the feedstuff
fresh
4.The bottom and body can be seprate freely, so it's very
convenient to clean
5.Raising amout:40-55/tray,150kg live weight

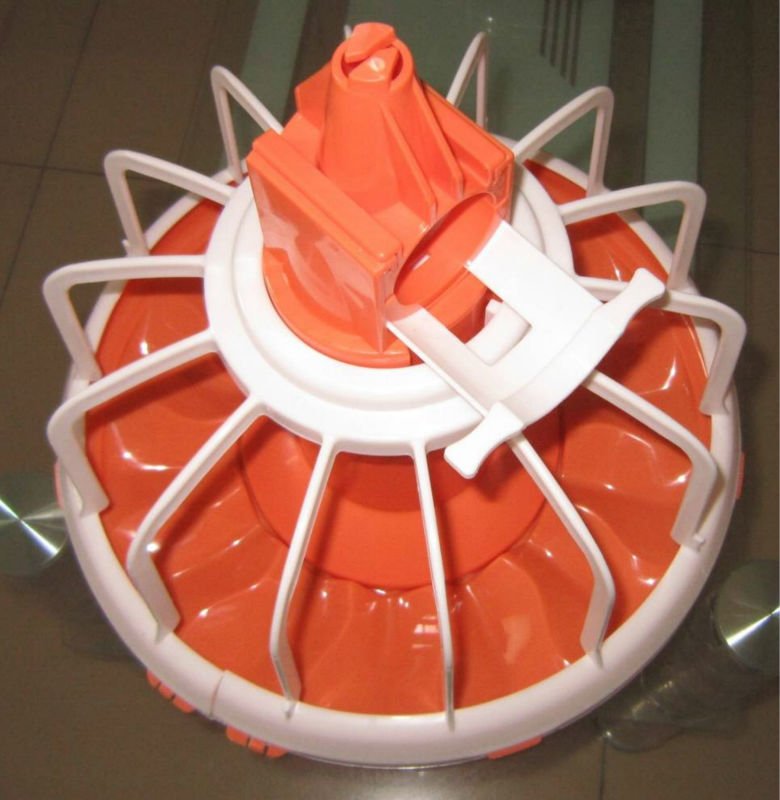

L-03 Product Description (NEW PRODUCT
1.Product Description
L-03 feed pan consist of bottom,grid,adjusting tank,switch-off
slice and head of feed pan, the detailed description as below:

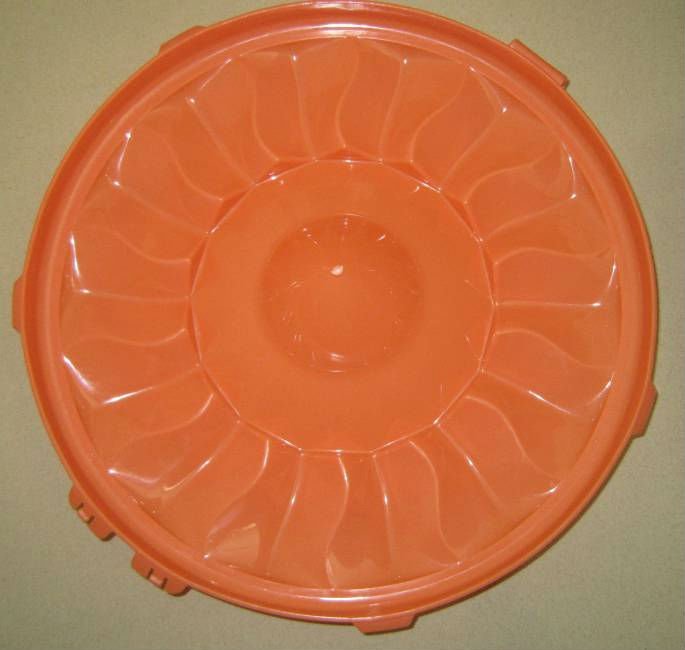

1,1 Bottom of feed pan:
Corrugated bottom can prevent chicken shaking heads in low cost to
some extent. And the way to connected grid is outer buckle way
which is easy to install and disassemble.
1,2 Grid:
14 girds can make more meat chicken eat at the same time, and by
through the grids and gear shift, perform shift adjusting.
1,3 Inner core:
Inner barrel with shifts with girds, then adjust the gear shifts.
The connection with pan head is embedded way.
1,4 Switch slice :
It is easy to push the switch slice by hand.
1,5 Top of feed pan:
Top of feed pan installed by embedded way which can reduce the
broken percent.
2.Analysis
L-03 is better than previous two pans in four aspects:
1, Top of feed pan made by embedded way improve the strength ,and
improve the problem of pan head breakage caused by previous two
kinds of pans.
2, Switch slice change into the limited way, and it is easy to
install and disassemble.
3, By lifting the gear shifts way,it is clear and easy to adjust.
4, Increase the thickness of bottom of pan, grid and inner barrel,
reduce the breakage percent.
